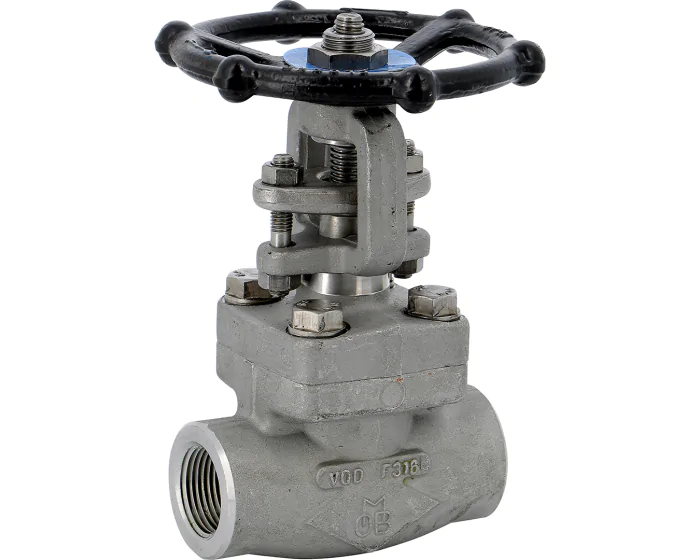

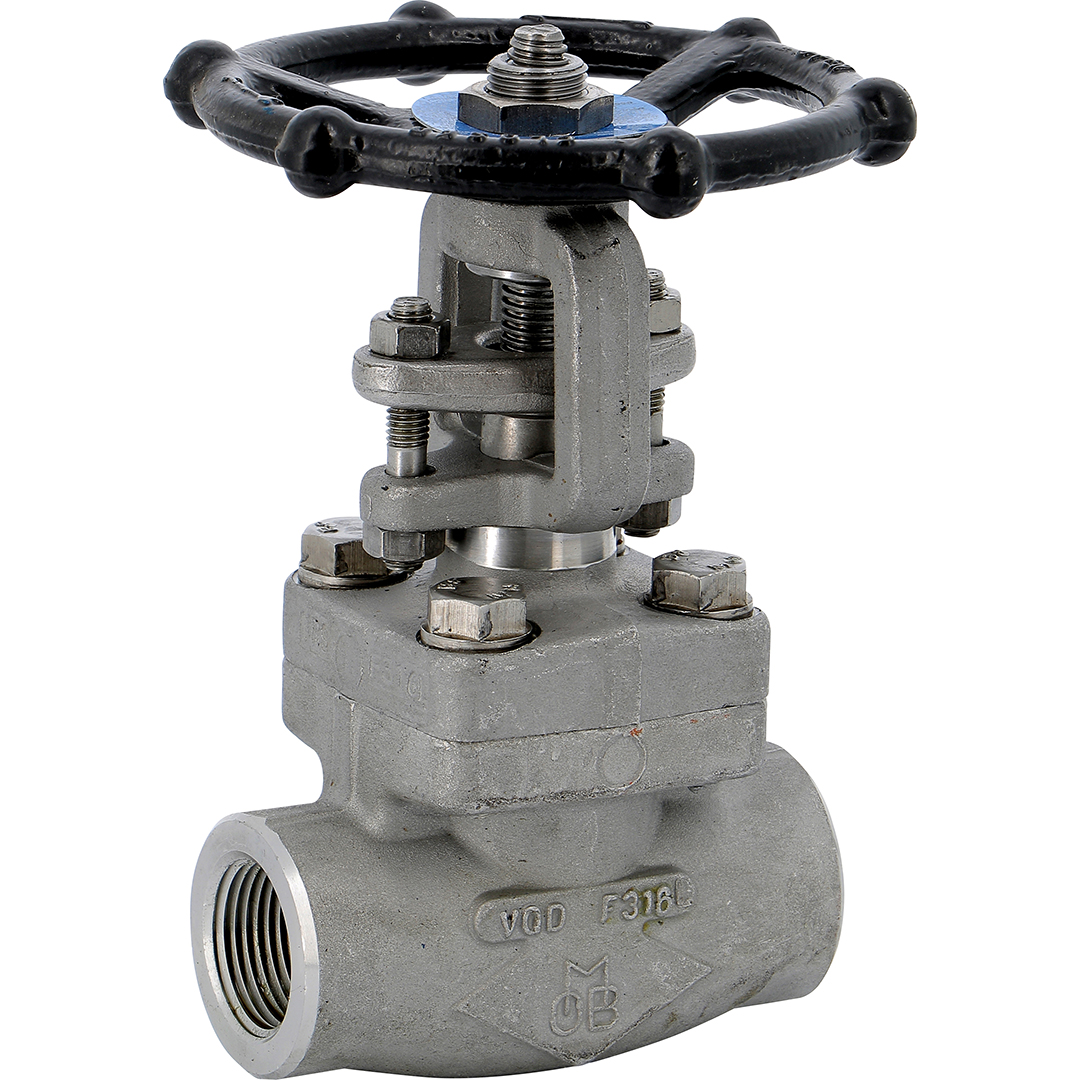

Stainless steel F316 gate valve 153 TRIM 10 800 lbs NPT 1/2"
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Stainless steel ASTM A182 F316 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 10 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.7 |
| Body material | Stainless steel F316/F316L |
| Gate material | Stainless steel ASTM A182 F316 |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 132 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A479 type 316 |
| TS max (°C) | 538 |
| TS min (°C) | -49 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel F316/F316L Standard 3/8'' | 153003 | S1007530 |
€159.39
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1/2'' | 153004SF | S1007531 |
€159.39
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 3/4'' | 153005SF | S1007532 |
€172.69
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1'' | 153006SF | S1007533 |
€231.79
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1''1/2 | 153008 | S1007534 |
€507.96
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 2'' | 153009 | S1007535 |
€605.47
(excl. btw)
|
add to cart |
